Our testing showed that small conductive cooling accessories may slow thermal rise and modestly extend recording time, but they may not maintain long-duration thermal stability under sustained outdoor recording conditions.

If the objective is to gain a small increase in runtime, these products may provide measurable benefit. However, users expecting uninterrupted operation during extended outdoor recording sessions may still encounter overheating limitations.

Some users reduce recording resolution, frame rate, stabilization, or bit-rate settings to lower thermal load. While these adjustments can help reduce heat generation, they also reduce image quality or recording performance. Our testing indicates that active forced-air cooling can substantially improve thermal stability while allowing cameras to continue operating at higher-performance recording settings.

Why Small Heat Sink Designs Often Have Limited Effectiveness

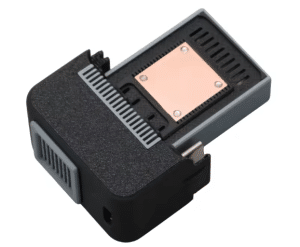

Many compact camera cooling accessories rely primarily on small copper plates or miniature heat sinks attached externally to the camera body or inserted into the battery compartment. While these approaches can improve heat dissipation to some degree, several thermal-transfer limitations reduce their overall effectiveness compared to larger active cooling systems.

Modern action cameras already use much of the camera body itself as part of the thermal path to move heat away from internal components. In many cases, the limiting factor is not the lack of additional external metal mass, but the lack of sufficient airflow to continuously remove heat from the camera surface once the body becomes heat saturated.

Our testing indicates that restoring high airflow across the camera body is often more effective in stationary recording environments than relying on small secondary heat sinks or conductive attachments alone.

Rather than attempting to transfer heat into another small thermal mass that may eventually become saturated itself, active airflow cooling allows the camera’s existing outer shell to function as a large integrated heat-dissipation surface while continuously carrying heat away through forced convection.

Also, a heat sink is only effective if heat can efficiently transfer into it.

In high-performance electronics such as desktop CPUs, thermal transfer efficiency is achieved through:

• High mounting pressure
• Precision-machined contact surfaces
• Thermal interface compounds (Thermal Paste)
• Large heat sink mass
• Significant airflow

Without these factors, thermal-transfer efficiency decreases substantially.

Surface Contact Limitations

Even surfaces that appear smooth contain microscopic irregularities, pits, scratches, and trapped air gaps that create thermal resistance between the camera body and the cooling device.

As a result, dry-mounted copper plates or lightly clamped heat sinks often transfer heat less efficiently than expected.

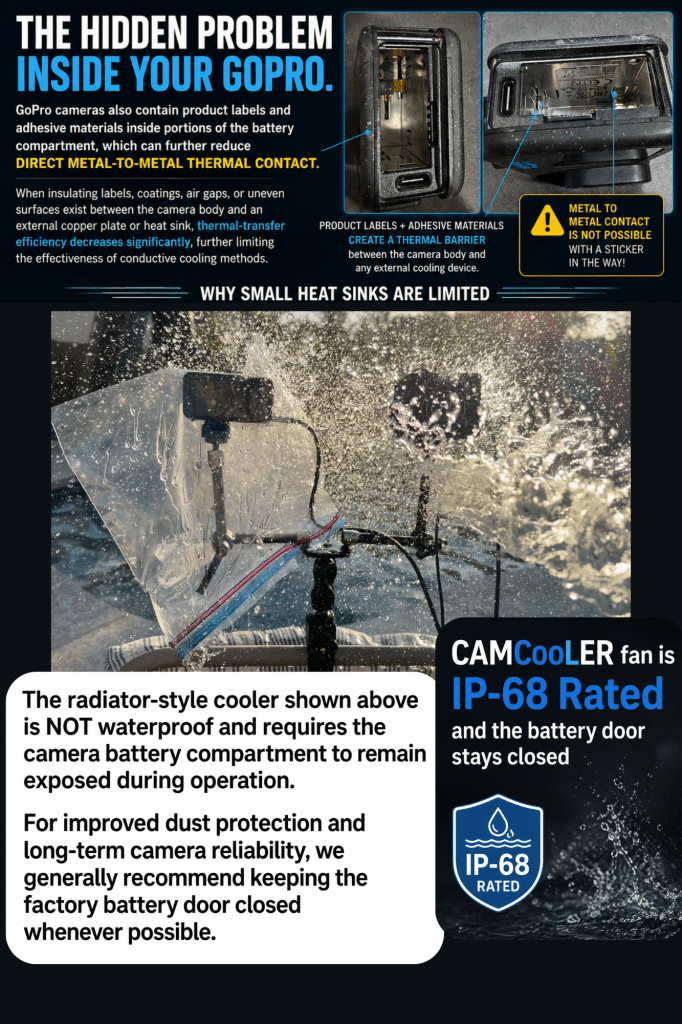

Action camera housings also differ significantly from desktop CPU heat spreaders. Camera exteriors may include coatings, curved surfaces, textured finishes, adhesives, labels, and non-optimized thermal contact areas that further reduce conductive heat transfer efficiency.

In compact thermal systems, interface resistance frequently becomes a major bottleneck in the cooling path.

If heat cannot efficiently transfer into the cooling device itself, downstream airflow and heat dissipation become less effective because much of the heat remains trapped within the camera body.

Why Desktop CPU Cooling Methods Do Not Directly Translate to Action Cameras

Desktop CPU cooling systems are engineered specifically for efficient thermal transfer:

• Flat integrated heat spreaders
• Controlled mounting pressure
• Thermal compounds filling microscopic voids
• Large fin surface area
• High-volume airflow

Action cameras operate under entirely different mechanical and thermal constraints.

Most compact external camera cooling accessories cannot apply sufficient mounting pressure, maintain optimized thermal interfaces, or provide enough thermal mass to replicate desktop-style cooling performance.

As a result, small conductive cooling attachments may eventually become thermally saturated while the camera continues generating heat internally.

Airflow Remains the Dominant Cooling Factor in Stationary Recording

Action cameras are heavily dependent on airflow during operation. When mounted on fences, tripods, streaming rigs, vehicles, or indoor static setups, that natural airflow is largely removed.

Under these conditions, restoring forced airflow across the camera body appears to be one of the most effective methods for maintaining long-duration thermal stability.

Our testing consistently shows that active airflow cooling provides substantially greater thermal stability during extended stationary recording compared to passive and other cooling attachments alone.

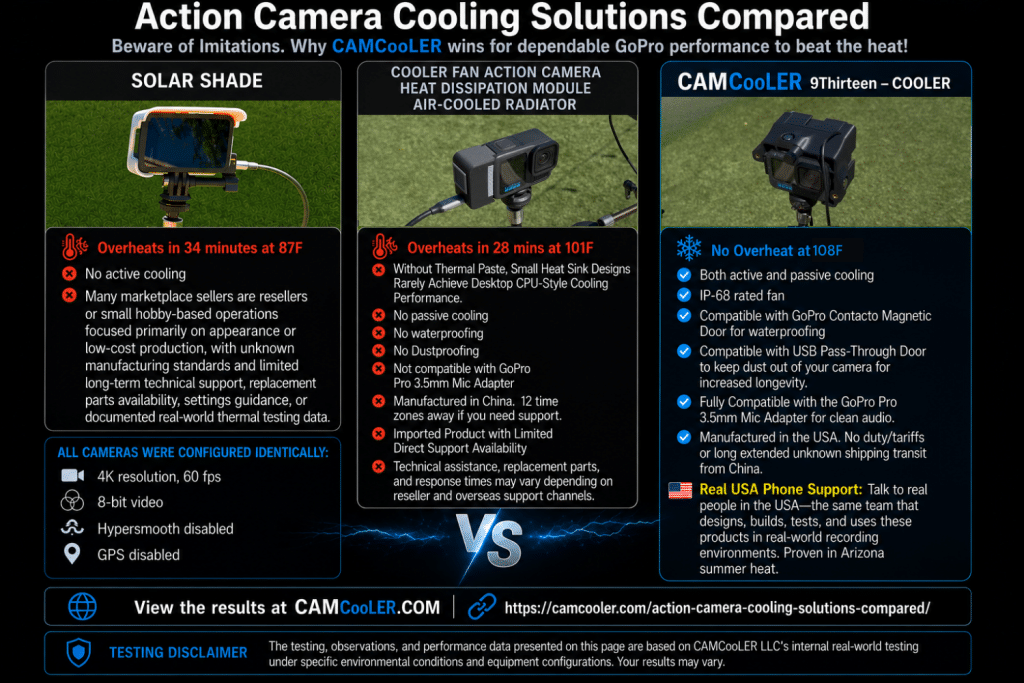

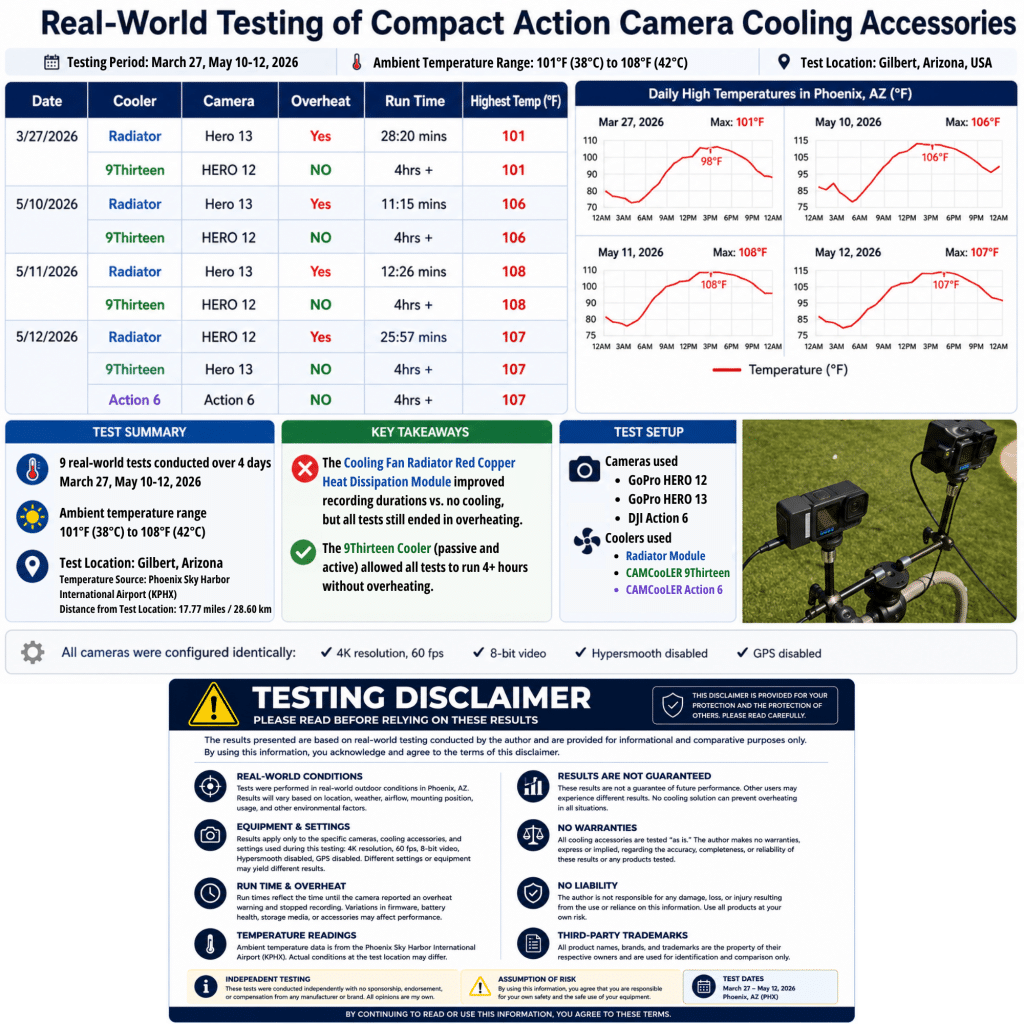

CAMCooLER Real-World Testing

CAMCooLER active cooling systems have been tested in demanding real-world Arizona outdoor conditions where action cameras commonly experience thermal shutdown when airflow is absent.

Examples include:

• 4K 60fps recording at approximately 99°F without overheating
• 4K 30fps recording at approximately 105°F without overheating
• Extended stationary outdoor recording in direct sunlight

Results vary depending on camera model, firmware, recording settings, ambient temperature, solar exposure, and airflow conditions.
